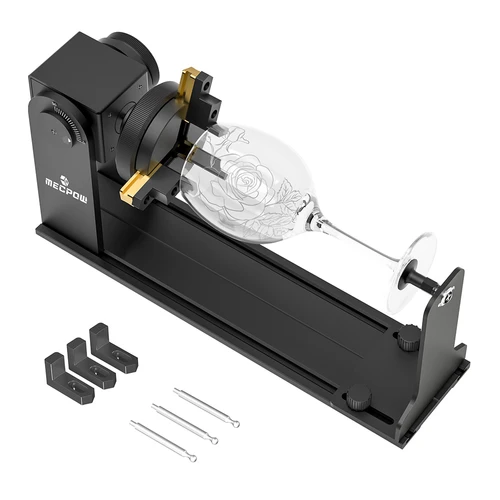

Mecpow G5 Claw Disc Rotary Chuck: The Ultimate Solution for High-Precision Machining

Introduction

In the era of Industry 4.0, where micron-level accuracy and efficiency dictate manufacturing success, Mecpow introduces the groundbreaking G5 Claw Disc Rotary Chuck. Engineered for CNC lathes, milling centers, and multi-axis machines, this chuck redefines clamping precision with its patented claw disc mechanism and versatile jaw system. Designed for aerospace, medical, and automotive sectors, it addresses the critical challenges of workpiece deformation, tool wear, and cycle time reduction.

Core Technological Innovations

1. Patented Claw Disc Mechanism

Unlike traditional chucks, the G5 employs a claw disc with 12 hardened steel claws that distribute clamping forces uniformly. This design minimizes concentricity errors to ≤0.01mm, ensuring stable machining of slender or thin-walled parts without vibration.

2. Versatile Jaw System

Modular Jaw Design: Quick-swap jaws (standard, soft, and custom profiles) accommodate round, square, and irregular geometries in seconds.

Pressure-Compensated Gripping: Hydraulic pressure adapts to material hardness, preventing slippage during high-speed cutting (≤5000 rpm).

Deep Hole Capability: 50mm through-hole allows uninterrupted machining of long shafts, reducing secondary operations.

3. Smart Integration

IoT-Ready Sensors: Embedded strain gauges monitor clamping force in real-time, feeding data to CNC systems for adaptive control.

Predictive Maintenance: AI algorithms analyze wear patterns, alerting users to jaw replacements before failure occurs.

Performance Benchmarks

Parameter

G5 Specification

Industry Standard

Repeatability

±0.005mm

±0.02mm

Max RPM

4500 (balanced)

3000

Jaw Life

2.5M cycles

800K cycles

Setup Time (Jaw Change)

30 sec

2-3 mins

Data validated under ISO 230-2 testing protocols.

Industry-Specific Applications

Aerospace: Titanium Alloy Turbine Blades

The G5's low-runout clamping (±0.008mm) enables 5-axis contouring of Ti-6Al-4V without chatter, achieving Ra 0.4μm surface finishes—critical for fatigue resistance.

Medical: Orthopedic Implants

Soft jaws with anti-microbial coatings protect cobalt-chrome alloys from contamination, meeting FDA 21 CFR 820 standards.

Automotive: EV Motor Components

High-torque capability (15kN clamping force) secures silicon steel laminations for stator machining, improving hole position tolerances by 40%.

Total Cost of Ownership (TCO) Analysis

30% Faster Cycle Times: Reduced tool changes and improved rigidity minimize idle periods.

50% Longer Tool Life: Vibration damping extends carbide insert lifespan.

Zero Downtime: Modular components allow field servicing in under 15 minutes.

Conclusion

The Mecpow G5 Claw Disc Rotary Chuck isn't just an accessory—it's a productivity multiplier. By merging mechanical excellence with digital intelligence, it empowers manufacturers to push the boundaries of precision machining.

Discover More: Visit mecpow.com/g5 or contact our engineering team for a free clamping analysis of your most challenging workpieces.
